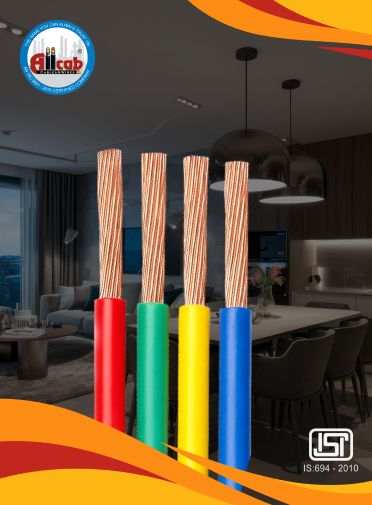

Flame Retardant PVC Insulated Single Core Unsheathed Copper Cable (upto 1100V AC)
Two Layer Single Core FR/ FRLS PVC Insulated Copper Conductor (Unsheathed) Heavy
Duty Electric Cables in Voltage Grade upto & including 1100V as per 1S-694
| Nominal size of conductor | Form of Conductor Circular Shaped | Nominal Thickness of XLPE Insulation | Min. Thickness of PVC Inner Sheath | Unarmoured | Formed wire/ Strip Armoured | Round Wire Armoured Cable | Current Rating in Air | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Thickness of PVC Outer sheath | Approx. Overall Diameter of Cable | Nominal Dimension of GI Flat Strip | Min. Thickness of PVC Outer Sheath | Approx. Overall Diameter of Cable | Nominal Dimension of GI Round Wire | Min. Thickness of PVC Outer Sheath | Appox. Overall Diameter of Cable | |||||
| Sq. mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | Amps |
| Four Core Copper Conductor XLPE Insulated | ||||||||||||
| 4 | Solid | 0.7 | 0.3 | 1.8 | 15.0 | NA | NA | NA | 1.40 | 1.24 | 16.5 | 36 |
| 6 | Solid | 0.7 | 0.3 | 1.8 | 16.5 | NA | NA | NA | 1.40 | 1.24 | 17.5 | 47 |
| 10 | Stranded | 0.7 | 0.3 | 1.8 | 18.5 | NA | NA | NA | 1.40 | 1.40 | 20.5 | 62 |
| 16 | Shaped | 0.7 | 0.3 | 1.8 | 20.0 | 4 x 0.8 | 1.40 | 20.0 | 1.60 | 1.40 | 21.0 | 79 |
| Three & Half core Aluminum Conductor XLPE Insulated | ||||||||||||
| 25/16 | Shaped | 0.9/0.7 | 0.3 | 2.0 | 22.0 | 4 x 0.8 | 1.40 | 23.0 | 1.60 | 1.40 | 25.5 | 96 |
| 35/16 | Shaped | 0.9/0.7 | 0.3 | 2.0 | 24.0 | 4 x 0.8 | 1.40 | 25.0 | 1.60 | 1.40 | 26.5 | 117 |
| 50/25 | Shaped | 1.0/0.9 | 0.3 | 2.0 | 27.5 | 4 x 0.8 | 1.40 | 28.0 | 1.60 | 1.56 | 29.5 | 142 |
| 70/35 | Shaped | 1.1/0.9 | 0.4 | 2.2 | 31.0 | 4 x 0.8 | 1.56 | 32.0 | 2.00 | 1.56 | 34.5 | 179 |
| 95/50 | Shaped | 1.1/1.0 | 0.4 | 2.2 | 35.0 | 4 x 0.8 | 1.56 | 36.0 | 2.00 | 1.56 | 38.4 | 221 |
| 120/70 | Shaped | 1.2/1.1 | 0.4 | 2.2 | 37.5 | 4 x 0.8 | 1.72 | 39.0 | 2.00 | 1.72 | 41.0 | 257 |
| 150/70 | Shaped | 1.4/1.1 | 0.5 | 2.4 | 41.0 | 4 x 0.8 | 1.72 | 42.0 | 2.00 | 1.88 | 45.0 | 292 |
| 185/95 | Shaped | 1.6/1.1 | 0.5 | 2.6 | 46.5 | 4 x 0.8 | 1.88 | 47.5 | 2.50 | 2.04 | 50.0 | 337 |
| 240/120 | Shaped | 1.7/1.2 | 0.6 | 2.8 | 52.5 | 4 x 0.8 | 2.04 | 53.5 | 2.50 | 2.20 | 56.0 | 399 |
| 300/150 | Shaped | 1.8/1.4 | 0.6 | 3.0 | 56.0 | 4 x 0.8 | 2.20 | 57.0 | 2.50 | 2.36 | 61.0 | 455 |
| 400/185 | Shaped | 2.0/1.6 | 0.7 | 3.4 | 64.0 | 4 x 0.8 | 2.52 | 65.0 | 3.15 | 2.68 | 70.0 | 530 |
Triple Extra Protection Single Core FR/ FRLS PVC Insulated Copper Conductor
(Unsheathed) Heavy Duty Electric Cables in Voltage Grade upto & including 1100V as per 1S-694
| Nominal Cross Sectional area of conductor | Number /Nom. Dia of Wires | Thickness of insulation (Nom.) | Overall Diameter Max. | Current Carrying Capacity | Resistance (Max.) per KM.@20°C |
| Sq.mm | Number/mm | mm | mm | Amps. | Ohm/Km |
| 0.75 | 24/0.2 | 0.6 | 50 | 7.00 | 26 |
| 1.00 | 14/0.3 | 0.7 | 3 | 12.00 | 18 |
| 1.50 | 22/0.3 | 0.7 | 3 | 16.00 | 12 |
| 2.50 | 36/0.3 | 0.8 | 3 | 22.00 | 7 |
| 4.00 | 56/0.3 | 0.8 | 4.30 | 29.00 | 5 |
| 6.00 | 84/0.3 | 0.8 | 5.50 | 37.00 | 3.30 |
