We possess license under IS-694:2010, IS-1554 (Part-1):1988 & IS-7098 (Part-1):1988 from Bureau of Indian Standards, Electrical Research & Development Association (ERDA), Baroda and Department Of Industries Haryana, Faridabad and have approved most of our existing Wire & Cable Products.
We are registered supplier of major Indian state electricity boards; government and semi-government institutions, submersible pump manufacturing units in Gujarat and other states many new projects and various industries/ Institutions, and just about anywhere.

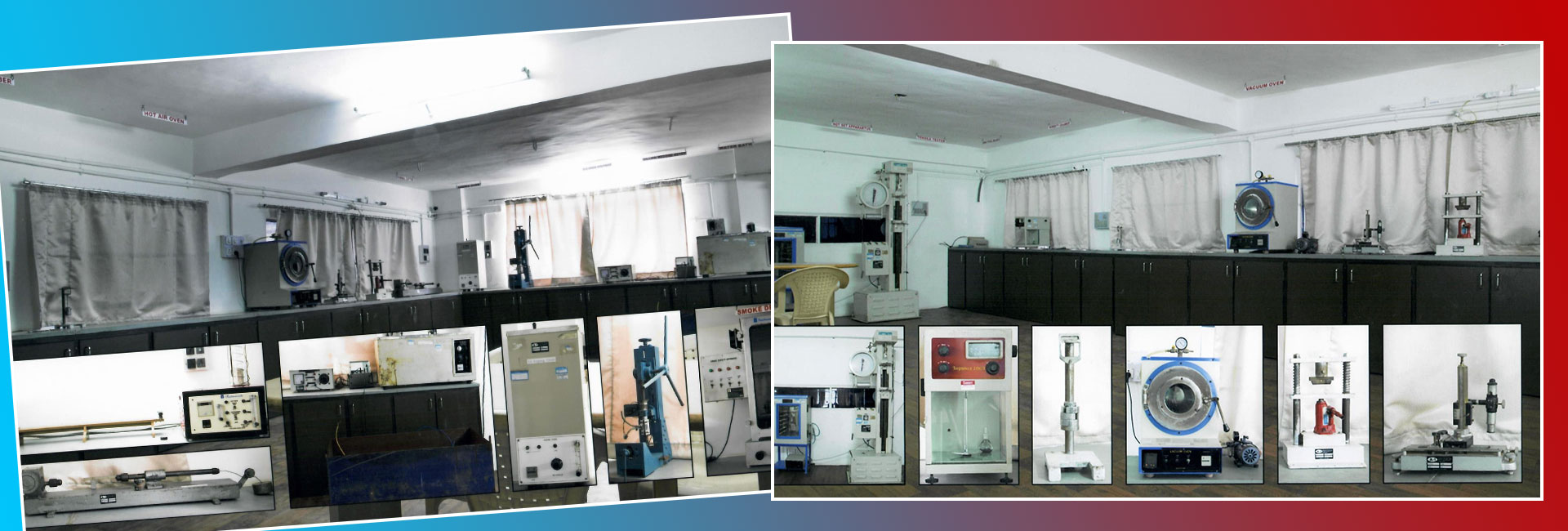

| Sr.No | Test Equipment Chemicals & Identification No. | Least Count & Range | Valid Cali. | Test Cl. with Ref. | Remark |
| 1 | Digital Micro ohm Meter with Cable Stand. Si. No. 61 | 0.2 Micro 11 Micro ohm | Yes | Conductor Resistance Ci. 6.3 of IS 694. | Make : A-1 |
| 2 | Tensile Testing Machine Si. No. 906/97 Model 1.3.D |
0-2500 (N) (0-250Kg f) 0-1.15kg-0-10kgs 0-2 kg-0-100kg 0-5 kg-0-500kg |
Yes |
Tensile streanath cl. 6.2.1./6.2.3 of IS 694. Conductor (A) Annealing Test (for copper) (B) Tensile Test (for Alu.) (C) Wrapping Test |
Dutron |
| 3 | Micro meter SI No. Om -25-01 | 0-25mm 0-01mm |
Yes | Wrapping. Diameter CI.6.2.2 of IS 8130 |
China |
| 4 | High Voltage Tester. SI.No.70 |
0-10kv-Ac | Yes | High Voltage Test CI16.3.1 of IS 694. |
A-1 |
| 5 | High Voltage Test SI.No.A-1-63 |
0-3kv – dc | Yes | High Voltage Test CI16.3.1 of IS 694. |
A-1 |
| 6 | Spark Tester SI. No. 65 |
0-15kv- Ac | Yes | Spark Tester CI. 16.4 of IS 694 |
A-1 |
| 7 | Visual Examination | --- | --- | Material, Construction & Identification IS 694 | --- |
| 8 | Microscope Micro meter Digital Vernier Caliper |
45% As above 0-150mm 0.02mm |
--- Yes Yes |
Thickness of Insulation Sheath & overall Dimension CI. 10,13,.14,& Table -2 to 6 of IS 694 |
--- China China |
| 9 | Vacuum Oven | 0-150° C | Yes | Calibrated from Tempsens | --- |
| 10 |
Million Mega Ohm Meter SI.No. 50415 64 |
500v 1x100000 Mega ohm |
Yes --- |
Insulation Resistance And Volume Resistivity . Table .1 of IS 5831 |
Sigma BTI |
| 11 |
H.V. Tester Ac H.V. Tester Dc Hot Water Bath SI. No. 857. |
0-10kv 0-3kv 0-100 Deg.c |
Yes Yes --- |
High Voltage Test & Water Immersion Test CI. 16.2 of IS 694. |
A-1 A-1 A-1 |
| 12 | Ageing air oven with flow meter Si.No.62(oven) Flow meter Make: Versler |
As above 0-200 gm 0.1mg 0-110 Deg.C |
Yes Yes Yes |
Loss of Mass Test & Thermal Ageing In Air, Table 1&2 Of IS 5831. |
Dutron Taosons A-1 |
| 13 | Flammability Test Apparatus Stop watch Flame Burner |
--- 1-100 th Sec. |
--- | Flammability Test CI.16.5 of IS 694 |
Fabri. China |
| 14 | Conductor Resistance | 1 micro ohm to 1 k ohm | Yes | Conductor Resistance test of IS : 8130 | --- |
| 15 | Oxygen index | As per IS standard | Yes | As per IS: 694 | --- |
| 16 | Chemicals for uniformity of Zinc coating | As per IS standard | Yes | To measure uniformity of zinc coating | --- |
| 17 | Analytical Weight Balance | 200 g | Yes | Calculation of Weight | A-1 |
| 18 | Hot Set Tester | 0-250° C | Yes | For XLPE Test as per IS: 7098 | --- |
| 19 | Cold cum Conditioning Chamber | -20 to 50° C | Yes | As per IS : 694:2010 | --- |
| 20 | Thermal Stability Apparatus | 1° C to 250° C | Thermal Stability Test of PVC Granules | Yes | --- |
